Soshine SC-S5-Fe в наличии!

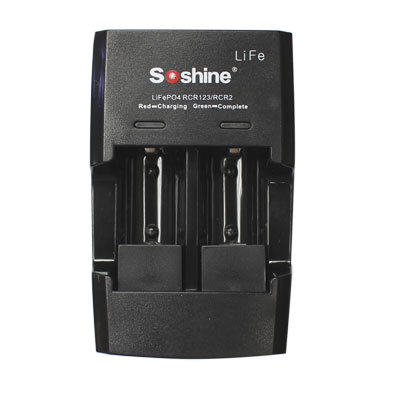

This charger is an intelligent charger especially designed to charge for 1-2pcs
LiFePO4 RCR123 / RCR2 / 16340 / 17335 3.0V
LiFePO4 15266P(Protection) / 16340P(Protection) 3.0VSpecification:
Input:: 12VDC 400mA-600mA
Output: 3.6VDC 300mA*1 300mA *2
Dimensions:L87*W55*H23 mm
Weight：41g2 pcs Individual LED indicate:
Red on ------------ Battery Charging
Blue on -------------Charge complete
Turn off -------------Stand by
Red-blue flash ---- Non rechargeable Li-ion battery like Lithium, I-MH ,Ni-Cd, Alkaline
Low voltage between <1.80VFeature
- End-of-charge voltage detection assures the safe and full charge any time
- Short-circuit protection
- Over voltage cut-off protection ----- prevents damage to your battery due to over voltage
- Complete individual channels ------ convenience; prevent 2 batteries charge each other
- Charge Method: CC/CV -------------- Charge battery fully and quickly
- Reverse polarity protection --------- prevent damage to your battery and charger
Charge time:
Type
Model
Voltage (V)
Capacity(mAh)
1 or 2pcs Charge Time (h)*
LiFePO4
16340(RCR123)/protected
3.2
800
3.2
16340(RCR123)/protected
3.2
700
2.8
SOSHINE RCR123
3.0
600
2.4
17335/protected
3.2
700
2.8
17335/protected
3.2
650
2.4
15266
3.2
350
1.4
14250/protected
3.2
300
1.2
RCR2
3.2
350
1.4
RCR2
3.2
300
1.2
Not charging all the way?
1 Polarity reversed; Make correct contact for polarity (+ and -) according to the sign in the battery compartment until LED from blue turn red. This charger cannot Polarity Auto Detection2 Loose connections between battery and charger replace battery into the battery compartment, turn the battery until LED from blue turn red.
3 Use did not rechargeable battery, like Lithium batteries or Ni-MH Ni-Cd battery, this charger only for Lithium Ion batteries, you should change battery.4 Gently rub battery ends with a clean pencil eraser or cloth to remove any residue, load the battery into charger in right side until LED from blue turn red
Tips:
It is normal for batteries to warm up while charging. They will cool down after they are charged.
If they are not used for more than one year, charge the battery complete.Warning:
To avoid personal injury and property damage from, but not limited to ,the risk of electric shock or fire:
Charge only rechargeable Lithium-Ion batteries. Charging any other types of batteries may cause them to leak rupture or explode.
Do not disassemble, modify any part of the charger ,or attempt to use the chargers as power source
Always unplug the charger from outlet before attempting maintenance or cleaning,
This charger is not a toy and should not be used by children or infirm persons without adequate training or supervision.Approve: adaptor ULCE EK PSE
One year warranty
This Soshine product is warranted only to the original purchaser upon presentation of proof of purchase, to be free from defects in materials and workmanship for one year from date of original purchase provided that no other repairs, alterations or modifications had been attempted by unauthorized personnel. Not applicable to damage caused by normal wear and tear or misuse. Repair or replacement of charger at Soshine option. For more information, please contact your nearest Soshine sales office.
Упаковка: блистер

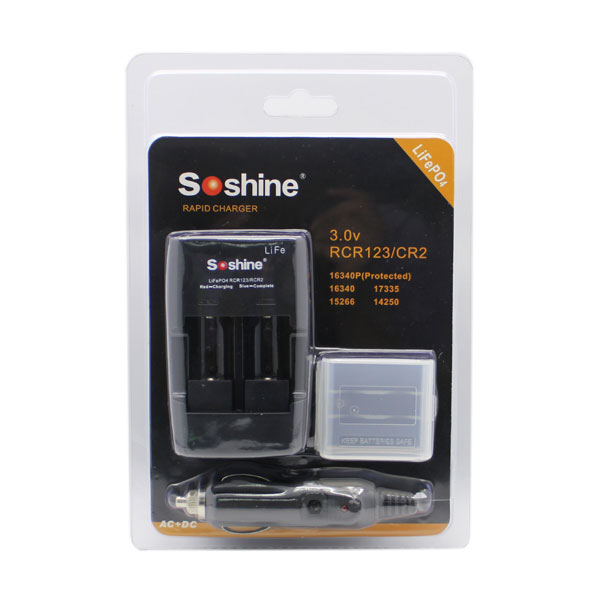

Комплектация: ЗУ, бокс 2x RCR123, автоадапер, блок питания.
Гарантийный срок: 1 год
