Арт. 01058
Зарядное устройство-анализатор для Ni-Mh/Li-Ion аккумуляторов типоразмера "крона".
Не советуем тестировать (или разряжать) на этом ЗУ Ni-Mh аккумуляторы с напряжением 9,6V (8-элементные).
BT-C900 разряжает Ni-Mh до 6,2V (6,2/8=0,775V), что ниже рекомендуемого значения разряда для этого типа химии (0,9V/элемент).
Для обычных 7-элеметных крон (с напряжением 8,4V), разряд до 6,2V - это норма (6,2/7=0,886V)

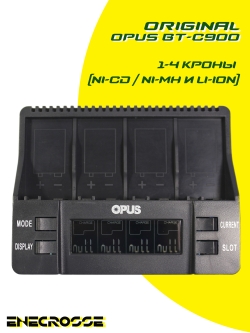

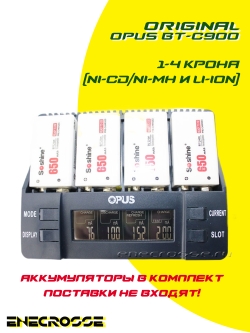

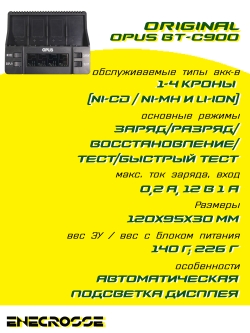

Opus BT-C900 is an intelligent charger for 9V Ni-Cd or Ni-MH rechargeable batteries. It can charge 4 batteries at the same time and batteries will be charged without interference. With different working modes for you to choose: Charge, discharge, test, refresh, and quick test ( for internal resistant measurement ). The charging current can be selected from 50mA to 200mA with 25mA per increment step. Discharging current is automatically set to the same as selected charging current.
Main Features:
● Intelligent charger for 9V Ni-Cd and Ni-MH rechargeable batteries
● The charger also includes overheat detection to protect rechargeable batteries and charger itself from overheating
● Button functions:
MODE. Press this button to select the charging mode ( Charge, Discharge, Test, Quick Test, Refresh )
DISPLAY. Press this button the LCD will be toggling display the voltage, current,capacity, work time etc.
CURRENT. Press this button to select desired charging current
SLOT. Press this button to select working mode or current for different slots
● The max. charging capacity is 2000mAh
● Operating temperature: 0 - 40 deg.C

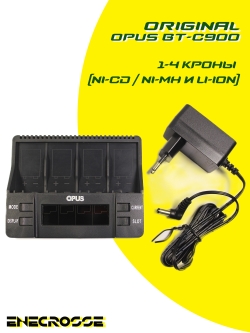

● Power adapter: DC 12V, 1A ( output ), 100-240V, 50 / 60Hz ( input )Note: Batteries are not included
Specifications
General
Plug: EU adapter
Charging Cell Type: Lithium Ion, Ni-MH
Compatible : 9V battery
Rechargeable Battery Qty: 4
Input Voltage: AC 100~240V 50/60HZ, DC 12V
Output Voltage: DC 12V, 1.5A
Functions
Fast Charging Function: YES
LCD Screen: YES
Auto Circuit Detection: YES
Built-in Protected Circuit: YES
Over Voltage Protection: YES
Short-Circuit Protection: YES
Over-Charging Protection: YES
Over-Discharging Protection: YES
Battery
Battery Quantity: 4
Dimension and Weight
Product weight: 0.140 kg
Package weight: 0.450 kg
Product size (L x W x H): 12 x 9.5 x 3 cm
Package size (L x W x H): 21 x 13 x 5 cm

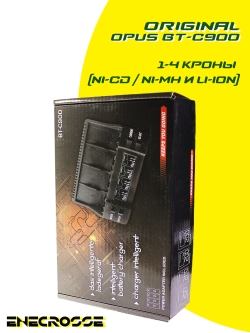

Package Contents: 1 x Opus Charger, 1 x EU Plug AC Power, 1 x English User Manual
